In the fast-paced world of manufacturing, precision is paramount. As industries strive for excellence, ensuring the quality of products has become a non-negotiable aspect. This is where Coordinate Measuring Machine (CMM) inspection services step into the spotlight. In this article, we delve into the significance of CMM inspection services and their pivotal role in upholding the standards of quality manufacturing.
Understanding CMM Inspection Services
What is a CMM?

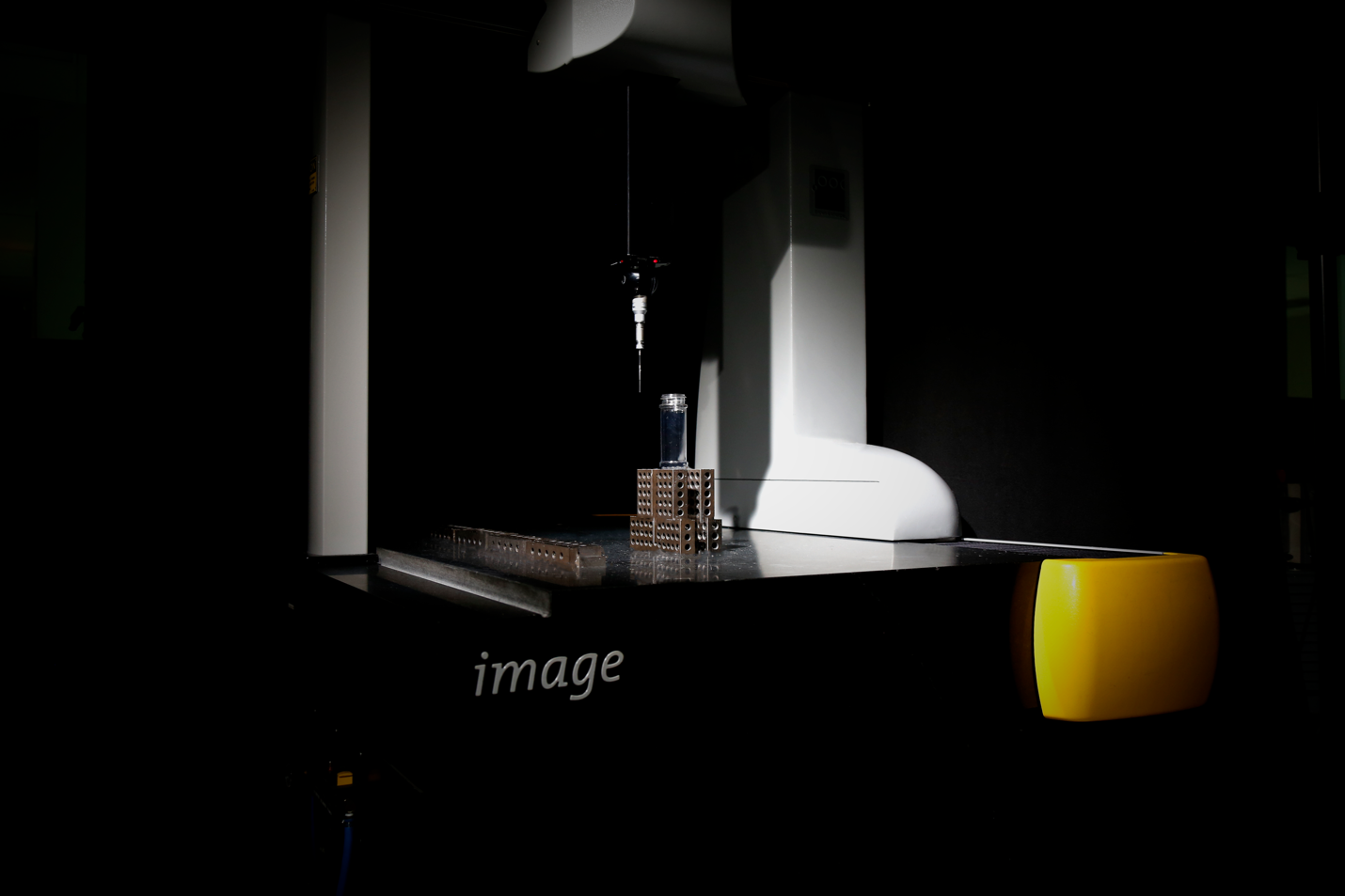

A Coordinate Measuring Machine (CMM) is a sophisticated and precise metrology instrument used in manufacturing and quality control processes to measure the physical geometrical characteristics of objects. CMMs utilize a three-dimensional Cartesian coordinate system to accurately determine the position of a probe in relation to the object being measured. The machine’s probing system makes contact with the object’s surface, collecting data points that are then analyzed to create a detailed and accurate representation of the object’s dimensions and features. These machines contribute significantly to ensuring the adherence to design specifications, identifying defects, and maintaining the overall quality and consistency of manufactured components.
Advanced Metrology Software
Coordinate measuring machines (CMMs) are often complemented by advanced metrology software to optimize their functionality. Among the notable metrology software solutions used in conjunction with CMMs are PC-DMIS, Metrolog, and PolyWorks. PC-DMIS, developed by Hexagon Manufacturing Intelligence, is renowned for its versatility and powerful analytical capabilities. Metrolog, another popular choice, provides a user-friendly interface and robust functionality for inspection and reporting. PolyWorks stands out for its versatility, supporting various measurement devices and offering advanced point cloud processing. These software solutions enable users to program complex measurement routines, conduct comprehensive data analysis, and generate detailed reports. The seamless integration of these metrology software packages with CMMs enhances efficiency, precision, and quality control in manufacturing processes, making them indispensable tools in industries that demand meticulous accuracy and adherence to stringent quality standards. Moreover, this data-driven approach allows for proactive decision-making, enabling continuous improvements and minimizing the likelihood of defects reaching the end consumer.
Precise Measurements for Complex Components
In the intricate landscape of manufacturing, CMM inspection services offer a reliable and efficient means of obtaining accurate and repeatable measurements for a wide array of components. This capability is vital in maintaining consistency and uniformity across production batches. It is particularly crucial when dealing with complex geometries or components with tight tolerances, where traditional measurement methods might fall short.
Efficiency in Quality Control
The speed and efficiency with which CMM inspection services operate contribute significantly to quality control processes. By automating measurements and inspections, manufacturers can streamline their operations, reduce production times, and, most importantly, enhance the overall quality of their products.
Detecting Deviations and Defects
One of the standout features of CMM inspection services is their ability to detect even the slightest deviations or defects in manufactured components. In the design phase of a product, engineers establish specific specifications and tolerances that must be met to ensure functionality, safety, and compliance with industry standards. CMMs serve as the final checkpoint in the manufacturing process, verifying that each component aligns precisely with the outlined specifications. This not only safeguards the integrity of the design but also minimizes the risk of defects and deviations that could compromise the performance and reliability of the final product.
Adaptability Across Industries
CMMs are a widely accepted measurement tool in industries where the form and function of components are tightly interlinked, such as in the production of critical engine parts or medical implants. However, CMM inspection services are not limited to specific industries. Whether in aerospace, automotive, medical, or any other sector, these services offer a universal solution for maintaining the highest quality standards across diverse manufacturing environments.
Challenges: The Cosine Error
One of the persistent challenges that can compromise the integrity of CMM measurements is the occurrence of what is commonly known as Cosine Error. This phenomenon has implications for the calibration of the CMM probe, influencing its interaction with the item under inspection and, consequently, introducing potential inaccuracies in the measurement process.
Cosine Error is fundamentally tied to the geometry of the measurement setup. It arises due to the angular relationship between the direction of the CMM probe and the surface of the object being measured. The cosine error is essentially a deviation that occurs when the probe’s movement is not perfectly aligned with the surface normal of the part being measured.
During the calibration of a CMM system, the probe is meticulously calibrated to ensure its accuracy. However, despite precise calibration, the cosine error can emerge because of the inherent geometry of the measurement scenario. When the probe is not perfectly aligned perpendicular to the surface of the object, the cosine error introduces a discrepancy in the measured values.
The cosine error is particularly pronounced when the surface being measured is not perpendicular to the direction of the probe. In situations where the probe’s movement deviates from the ideal alignment, the cosine error can lead to inaccuracies in the recorded measurements.
To mitigate the impact of cosine error, calibration procedures often involve compensating for the angular deviations. Advanced CMM systems employ correction algorithms and software adjustments to account for the cosine error and minimize its effects on measurements. Regular maintenance and calibration checks are also crucial to identify and rectify any deviations in the probe’s alignment over time.
Addressing cosine error is not only about correcting deviations during calibration but also about adopting best practices during the measurement process. Operators must be attentive to the orientation of the probe relative to the surface being measured, especially in scenarios involving complex geometries or intricate components.
The Crucial Role in Quality Manufacturing
Ensuring Compliance with Specifications
Manufacturers are often bound by strict design specifications and industry standards. CMM inspection services act as the gatekeepers, ensuring that every product aligns with these specifications. This adherence to standards not only meets regulatory requirements but also enhances the reputation of the manufacturer in the market.
Minimizing Rework and Wastage
By identifying deviations early on, CMM inspection services contribute significantly to minimizing rework and wastage. This not only saves time and resources but also improves overall operational efficiency.
First Article Inspection
In quality assurance, First Article Inspection (FAI) services play a pivotal role in setting the standard for all future quality assessments of a product. By meticulously examining the inaugural item produced, FAI conducts an exhaustive evaluation of each measurement’s actual dimensions and scrutinizes every component against the specified drawings. The primary objective of FAI is to validate the seamless alignment of design, engineering, and production processes, ensuring that the final product attains the highest of quality standards.
Boosting Customer Confidence
In an era where consumer expectations are higher than ever, delivering products of impeccable quality is essential. CMM inspection services play a pivotal role in boosting customer confidence by guaranteeing that every product leaving the manufacturing floor meets the highest quality standards.
In conclusion, CMM inspection services stand as the unsung heroes in the realm of quality manufacturing. Their ability to provide precise measurements, streamline quality control processes, and ensure compliance with specifications makes them indispensable for modern industries. As manufacturers strive for perfection, incorporating CMM inspection services into their processes becomes a strategic move towards delivering products that not only meet but exceed customer expectations. Embrace the precision, embrace the quality – choose CMM inspection services for manufacturing excellence.
